3 Boy Takma Uçlu Matkaplar
3 Boy Takma Uçlu Matkaplar U-DRILL 12.5XD3 SP..050204
Teknik Özellikler
| Ürün Tanımı | Ölçüler | Uç | Yedek Parçalar | |||||||
|---|---|---|---|---|---|---|---|---|---|---|

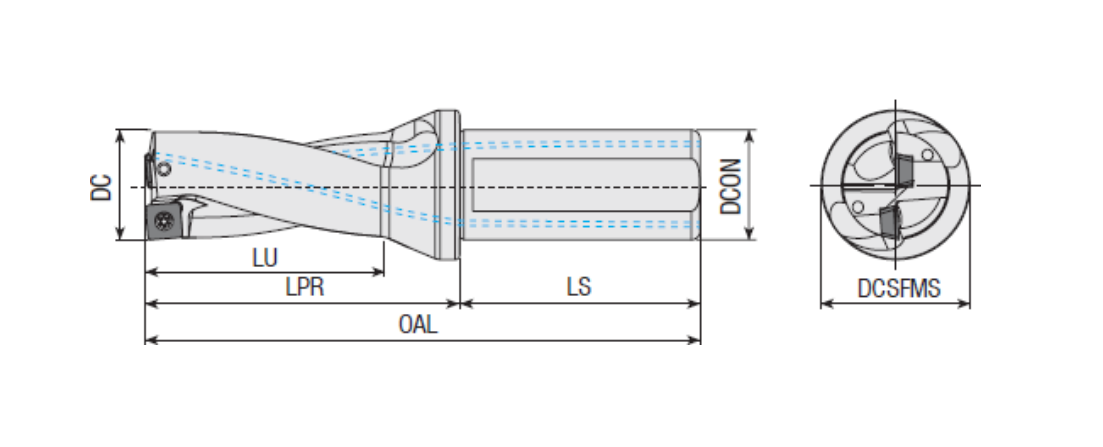

| dc | dcon | dcsf-ms | oal | lu | lpr | ls |
sıkma vİdası
|
tork anahtarı
|
||
| U-DRILL 12.5XD3 SP..050204 | 12,5 | 20 | 25 | 108 | 36 | 58 | 50 | SP.. 050204 | M2X4 | T06 |
| U-DRILL 13XD3 SP.. 050204 | 13 | 20 | 25 | 111 | 39 | 61 | 50 | SP.. 050204 | M2X4 | T06 |
| U-DRILL 13.5XD3 SP..050204 | 13,5 | 20 | 25 | 111 | 39 | 61 | 50 | SP.. 050204 | M2X4 | T06 |
| U-DRILL 14XD3 SP.. 050204 | 14 | 20 | 25 | 114 | 42 | 64 | 50 | SP.. 050204 | M2X4 | T06 |
| U-DRILL 14.5XD3 SP.. 050204 | 14,5 | 20 | 25 | 114 | 42 | 64 | 50 | SP.. 050204 | M2X4 | T06 |
| U-DRILL 15XD3 SP.. 050204 | 15 | 20 | 25 | 117 | 45 | 67 | 50 | SP.. 050204 | M2.2X4 | T06 |
| U-DRILL 15.5XD3 SP..060204 | 15,5 | 20 | 25 | 126 | 45 | 67 | 50 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 16XD3 SP.. 060204 | 16 | 25 | 34 | 126 | 48 | 70 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 16.5XD3 SP.. 060204 | 16,5 | 25 | 34 | 129 | 48 | 70 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 17XD3 SP.. 060204 | 17 | 25 | 34 | 129 | 51 | 73 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 17.5XD2 SP.. 060204 | 17,5 | 25 | 34 | 132 | 51 | 73 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 18XD3 SP.. 060204 | 18 | 25 | 34 | 135 | 54 | 76 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 18.5XD3 SP.. 060204 | 18,5 | 25 | 34 | 135 | 54 | 76 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 19XD3 SP.. 060204 | 19 | 25 | 34 | 138 | 57 | 79 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 19.5XD3 SP.. 060204 | 19,5 | 25 | 34 | 138 | 57 | 79 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 20XD3 SP.. 060204 | 20 | 25 | 34 | 141 | 60 | 82 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 20.5XD3 SP..060204 | 20,5 | 25 | 34 | 141 | 60 | 82 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 21XD3 SP.. 060204 | 21 | 25 | 34 | 144 | 63 | 85 | 56 | SP.. 060204 | M2.2X4 | T07 |
| U-DRILL 21.5XD3 SP.. 060204 | 21,5 | 25 | 34 | 144 | 63 | 85 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| U-DRILL 22XD3 SP.. 07T308 | 22 | 25 | 34 | 147 | 66 | 88 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| U-DRILL 22.5XD3 SP.. 07T308 | 22,5 | 25 | 34 | 147 | 66 | 88 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| U-DRILL 23XD3 SP.. 07T308 | 23 | 25 | 34 | 147 | 69 | 91 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| U-DRILL 23.5XD3 SP.. 07T308 | 23,5 | 25 | 34 | 150 | 69 | 91 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| U-DRILL 24XD3 SP.. 07T308 | 24 | 25 | 34 | 150 | 72 | 94 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| UU-DRILL 24.5XD3 SP.. 07T308 | 24,5 | 25 | 34 | 153 | 72 | 94 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| U-DRILL 25XD3 SP.. 07T308 | 25 | 25 | 34 | 156 | 75 | 97 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| U-DRILL 25.5XD3 SP.. 07T308 | 25,5 | 25 | 34 | 156 | 75 | 97 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| U-DRILL 26XD3 SP.. 07T308 | 26 | 25 | 34 | 159 | 78 | 100 | 56 | SP.. 07T308 | M2.5X4 | T08 |
| U-DRILL 26.5XD3 SP.. 07T308 | 26,5 | 25 | 34 | 159 | 78 | 100 | 56 | SP.. 07T308 | M2.5X4 | T08 |
