3 Boy Takma Uçlu Matkaplar

Anasayfa > Ürünler > U Diriller > 3 Boy Takma Uçlu Matkaplar >

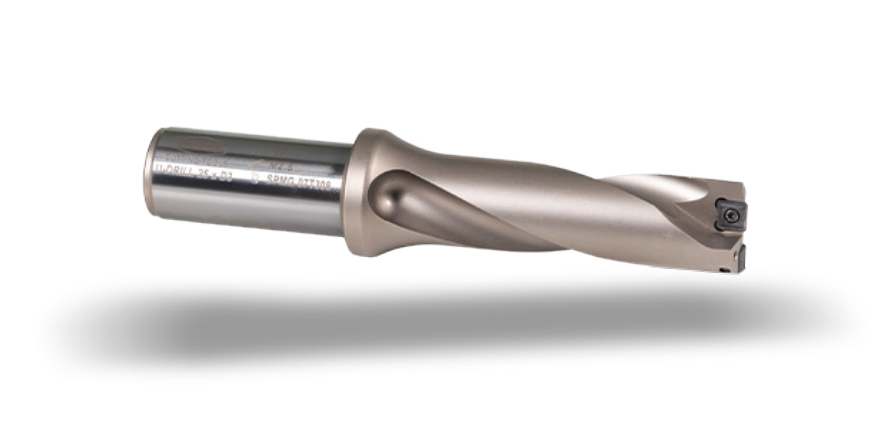

3 Boy Takma Uçlu Matkaplar

3 Boy Takma Uçlu Matkaplar U-DRILL 27XD3 SP.. 07T308

Teknik Özellikler

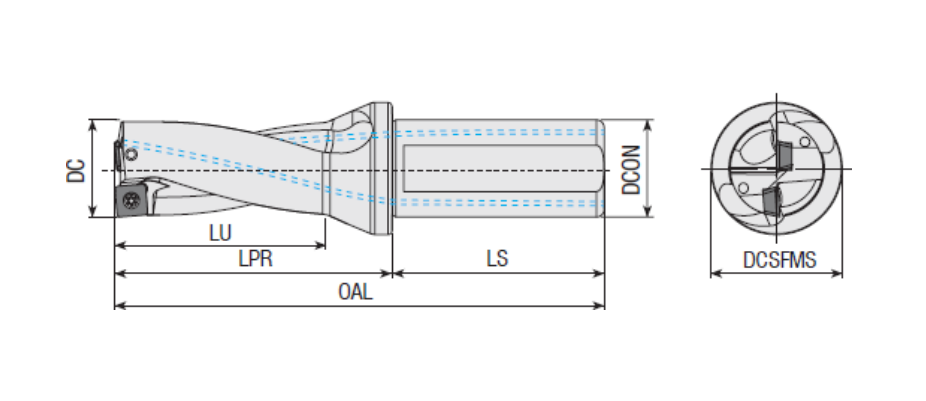

Ürün Tanımı	Ölçüler							Uç	Yedek Parçalar
	dc	dcon	dcfms	oal	lu	lpr	ls		sıkma vİdası	tork anahtarı
U-DRILL 27XD3 SP.. 07T308	27	25	34	159	81	100	56	SP.. 07T308	M2.5X4	T08
U-DRILL 27.5XD3 SP.. 07T308	27,5	25	34	159	81	103	56	SP.. 07T308	M3.5X9	T08
U-DRILL 28XD3 SP.. 090408	28	25	34	162	84	103	56	SP.. 090408	M3.5X9	T15
U-DRILL 28.5XD3 SP.. 090408	28,5	25	34	162	84	103	56	SP.. 090408	M3.5X9	T15
U-DRILL 29XD3 SP.. 090408	29	25	34	165	87	106	56	SP.. 090408	M3.5X9	T15
U-DRILL 29.5XD3 SP.. 090408	29,5	25	34	165	87	109	60	SP.. 090408	M3.5X9	T15
U-DRILL 30XD3 SP.. 090408	30	32	44	177	90	109	60	SP.. 090408	M3.5X9	T15
U-DRILL 30.5XD3 SP.. 090408	30,5	32	44	177	90	117	60	SP.. 090408	M3.5X9	T15
U-DRILL 31XD3 SP.. 090408	31	32	44	180	93	117	60	SP.. 090408	M3.5X9	T15
U-DRILL 32XD3 SP.. 090408	32	32	44	183	96	120	60	SP.. 090408	M3.5X9	T15
U-DRILL 33XD3 SP.. 090408	33	32	44	186	99	123	60	SP.. 110408	M3.5X9	T15
U-DRILL 34XD3 SP.. 110408	34	32	44	189	122	126	60	SP.. 110408	M4X11	T15
U-DRILL 35XD3 SP.. 110408	35	32	44	192	105	129	60	SP.. 110408	M4X11	T15
U-DRILL 36XD3 SP.. 110408	36	32	44	195	108	132	60	SP.. 110408	M4X11	T15
U-DRILL 37XD3 SP.. 110408	37	32	44	198	111	135	60	SP.. 110408	M4X11	T15
U-DRILL 38XD3 SP.. 110408	38	32	44	201	114	138	60	SP.. 110408	M4X11	T15
U-DRILL 39XD3 SP.. 110408	39	32	44	204	117	141	60	SP.. 110408	M4X11	T15
U-DRILL 40XD3 SP.. 110408	40	32	44	207	120	144	60	SP.. 110408	M4X11	T15
U-DRILL 41XD3 SP.. 110408	41	32	44	210	123	147	60	SP.. 110408	M5X11	T15
U-DRILL 42XD3 SP.. 140512	42	32	44	213	126	153	60	SP.. 140512	M5X11	T20
U-DRILL 43XD3 SP.. 110512	43	32	44	216	129	156	60	SP.. 140512	M5X11	T20
U-DRILL 44XD3 SP.. 140512	44	32	44	219	132	159	60	SP.. 140512	M5X11	T20
U-DRILL 45XD3 SP.. 140512	45	40	54	237	135	167	70	SP.. 140512	M5X11	T20
